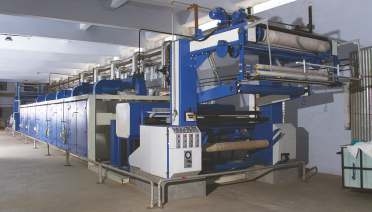

Pinning Unit for Woven Fabric

It is Suitable for almost all fabric conditions by setting feeler head for photoelectric touch type.

Three / Four finger Selvedge uncurler for opening the curled selvedge.

Shorter distance between treadle and pinning roller results in easier working.

Perfect fabric holding and pinning by electronic infrared edge sensor with rack and pinion arrangement system.

Pinning Unit for Knitted Fabric

For Knit fabric (Optional)

This device functions to spread the curled selvedge before pinning.

Selvedge Cutting

The edge trimmers are mounted at the delivery of Stenter to trim and remove the pinned edge of the web. The trimming position of the knives can be adjusted infinitely to suit various material qualities, and to get the specific edge trim required. The cut-out Selvedge is cleaned through the suction blower.

Gumming Unit

For Knit fabric (Optional)
This system applies gum to the selvedge and prevents selvedge curling perfectly.

J-Scray 2 & 3 Bowl Mangle (Common Structure)

Two/Three Bowl Mangle for additional squeezing preventing the carriage of extra moisture to the Chamber (Optional).
8-10 ton Nip pressure capacity.
A common structure for double mangle assembly (optional).
Less space accommodation for weft straightener unit.
Improved stability.

Feeding Desk

Individual driven overfeed, underfeed, selvedge LHS & selvedge RHS controlled by PLC & TOUCH SCREEN.
Overfeeding from -10 to 40%, directly adjustable to PC/TOUCH SCREEN.
Specialized driven SS scroll rollers for woven as well as knitted fabrics.
Gumming & Pre Steaming options.
4 FINGERS UNCURRLERS or EDGE SPREADERS from TEFLON make for proper selvedge decurling.
Pinning operators for selvedge pinning wheel + Multiple self-driven pinning brush options.
Infrared sensors for fabric infeed with fabric safety options for fabric pin out.
Fabric spread at feed end with separate drive synchronized with chain drive.

Heating Media (Gas Type)

Heating Media (Thermal Oil Type)

Chamber

Insulation panels of mineral wool for less heat loss.
Chambers are designed for minimum heat loss occurs.

Blower

Close type radial impeller with backward vanes for high output.
Ring mounted AC motor or flange mounted occupying less space and easy maintenance.

Nozzles

The newly design radial fans and nozzles increase the total flow of hot air inside and guarantee circulation level increase of more than 25% both. Impinging and amount of circulation of hot air optimized to result in increased productivity.

Delivery Desk

Standard version common drive to both side chain connected through shaft and bevel gears, optionally separate drive to both side chain with servo controlled system.
Exit of the Machine can be with Plaiting, Big Batch, Surface Batcher and Center Winder with non-stop option of J-Scray & Accumulator.

Cooling Zone (Optional for cooling)

Cooling zone with air circulation.
Cooling cylinder with chilled water circulation.

Electric Control Panel

Steel fabricated electrical Control Panel consist of necessary switch gears like, Switch, Fuse unit, Contractors, Relays, MCB.
We also provide separate electrical Panel for fully A.C. drive as per requirement (optional).
